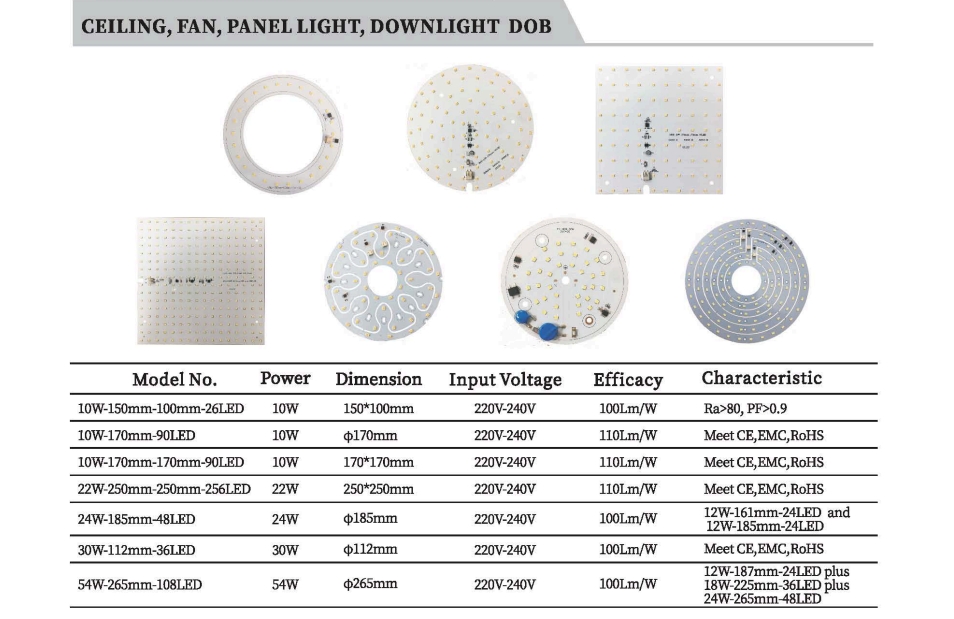

Ceiling, Fan, Panel Light, Downlight DOB

Versatile DOB modules suitable for ceiling lights, panel lights, fan lights and downlights in residential and commercial projects.

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Model No.	Power	Dimension	Input Voltage	Efficacy	Characteristic
10W-150mm-100mm-26LED	10W	150*100mm	220V-240V	100Lm/W	Ra>80, PF>0.9
10W-170mm-90LED	10W	φ170mm	220V-240V	110Lm/W	Meet CE,EMC,RoHS
10W-170mm-170mm-90LED	10W	170*170mm	220V-240V	110Lm/W	Meet CE,EMC,RoHS
22W-250mm-250mm-256LED	22W	250*250mm	220V-240V	110Lm/W	Meet CE,EMC,RoHS
24W-185mm-48LED	24W	φ185mm	220V-240V	100Lm/W	12W-161mm-24LED and 12W-185mm-24LED
30W-112mm-36LED	30W	φ112mm	220V-240V	100Lm/W	Meet CE,EMC,RoHS
54W-265mm-108LED	54W	φ265mm	220V-240V	100Lm/W	12W-187mm-24LED plus 18W-225mm-36LED plus 24W-265mm-48LED

1) High PF value leads to low power consumption.

2) Integrated circuit, compact size, flexible and innovative design.

3) Over temperature protection, over voltage protection, surge protection.

4) Low THD. Easier to pass EMC test and other certificate tests.

5) Multiple color temperatures and CRI for your choice.
